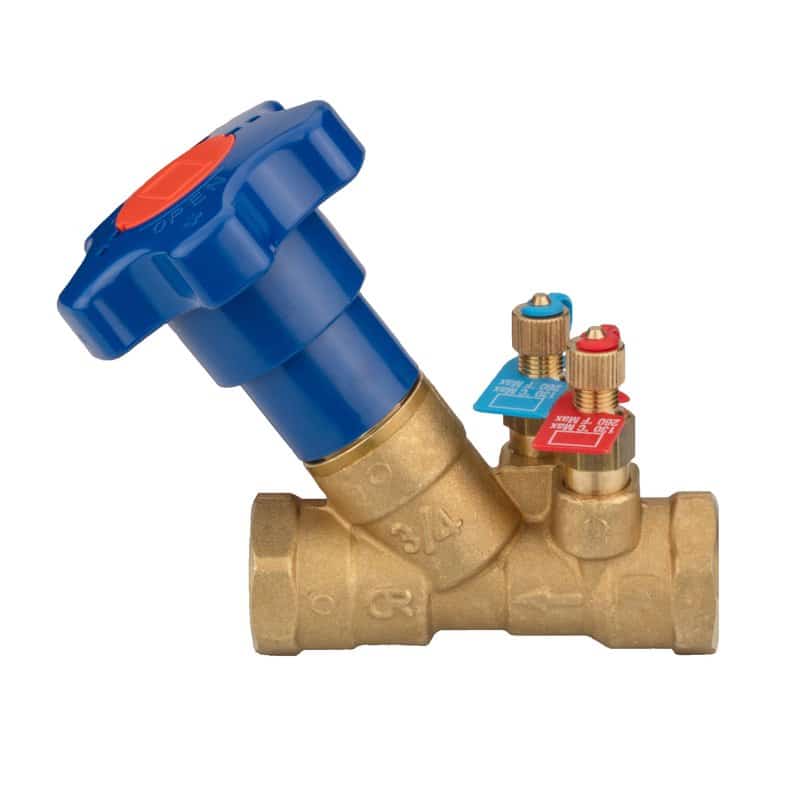

1/2 to 2 BSP DZR Brass Fixed Orifice Static Balancing Valve with Drain, Circuit Balancing Valve

Fixed orifice DZR brass double regulating valve

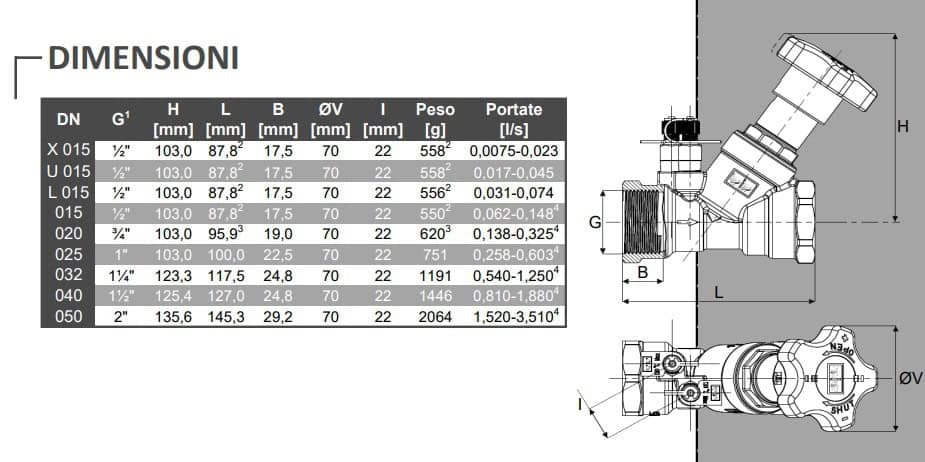

Diameters from DN015 – ½” to DN050 – 2″

Threaded F/F, BSP/NPT type

Olive & nut kit (O/N) for European copper tubing (EN1057) on request:

  • DN015, kit for 15 mm pipe
  • DN020, kit for 22 mm pipe

Available in the following versions:

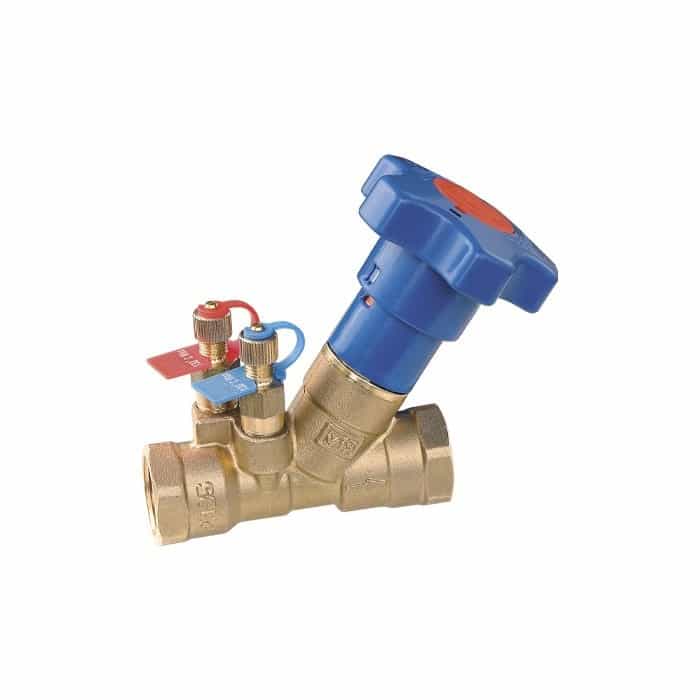

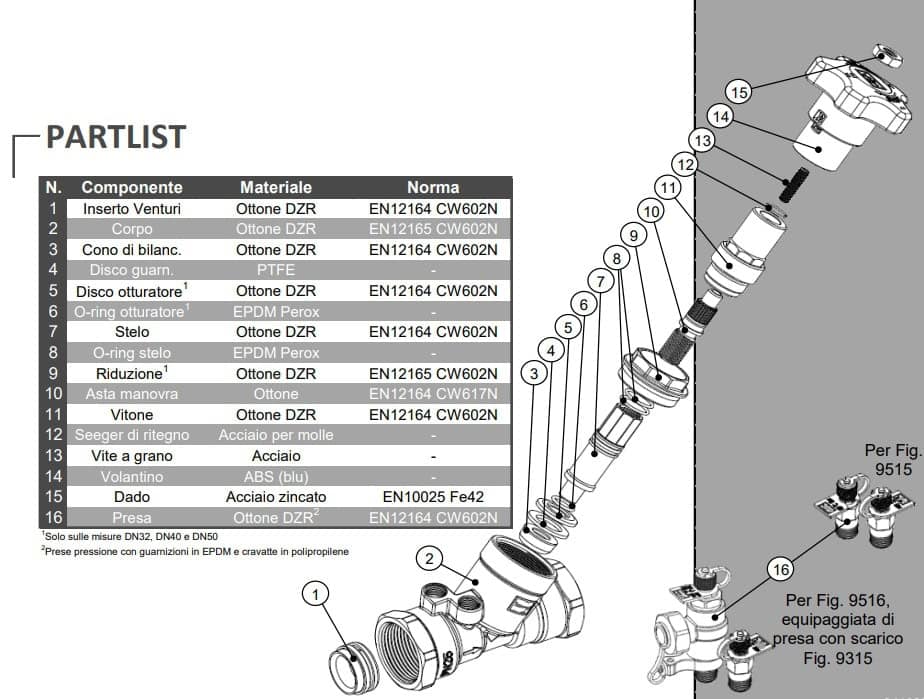

  • Fig. 9515, with test points
  • Fig. 9516, with test points (high pressure TP with drain)

WRAS and TR CU 010 compliant

PN25 (Max 25bar up to 110°C, max 20bar above)

PN16 with O/N kit (Max 16bar up to 30°C, max 5bar at 120°C)

Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
