3/4‘’ BSP DZR Brass ON/OFF Terminal Balancing Valve with Connection for Actuator, Static Balancing Valve

DZR brass ON/OFF terminal valve

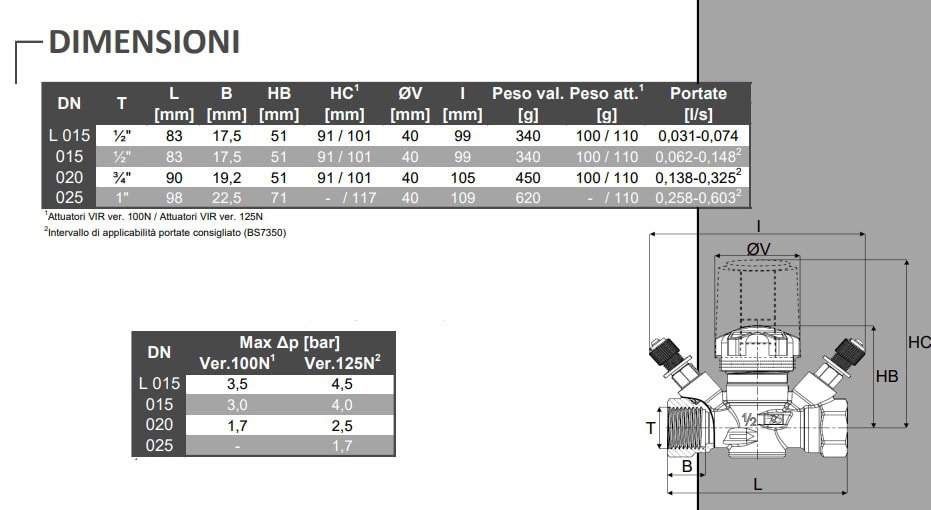

Diameters from DN015 – ½” to DN025 – 1″

Threaded F/F,BSP/NPT type



Olive and nut kit (O/N) for European copper tubing (EN1057) on request:

  • DN015, kit for 15 mm pipe
  • DN020, kit for 22 mm pipe

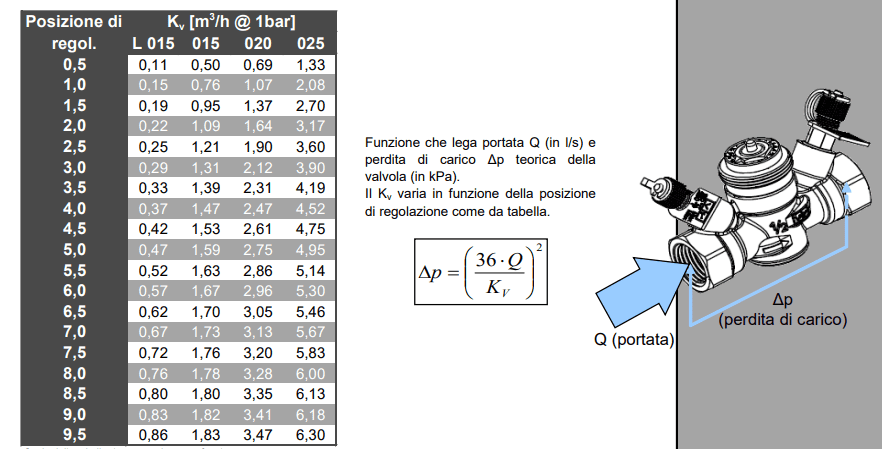

Tolerance on nominal Kv for fully open valve ±10%

(test according to BS7350)

With threaded M30x1,5 connection for linear actuator

WRAS and TR CU 010 compliant



PN20 (Max 20bar up to 80°C, max 10bar at 130°C)

PN16 with O/N (Max 16bar up to 30°C, max 5bar at 120°C)

Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
