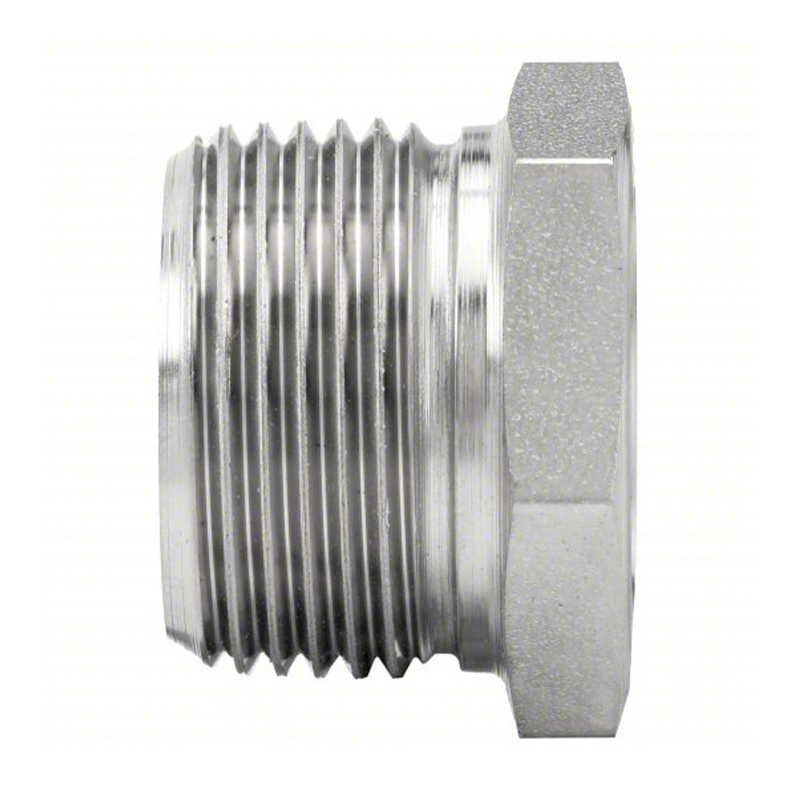

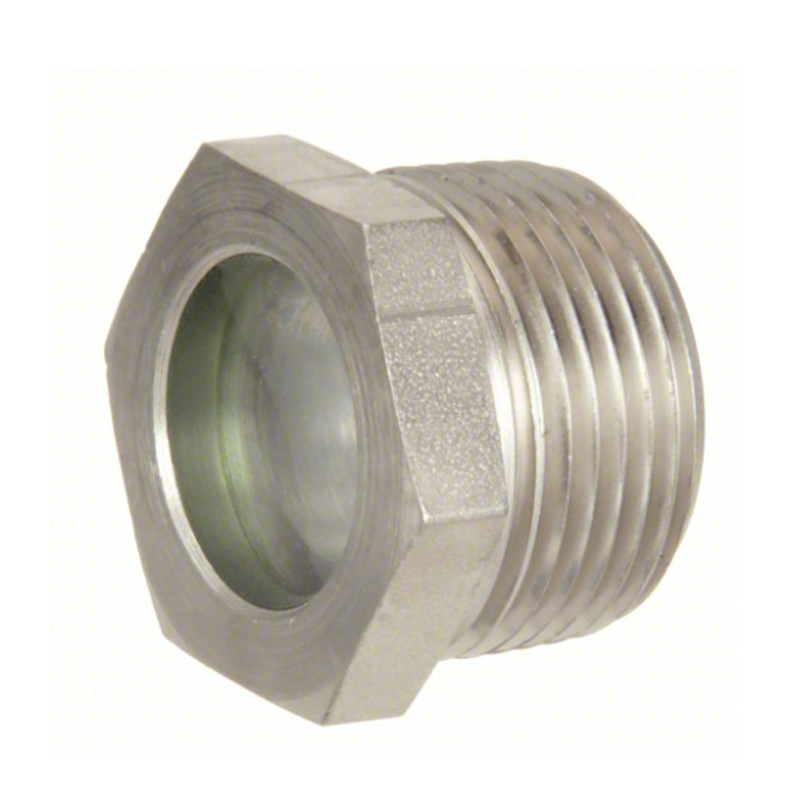

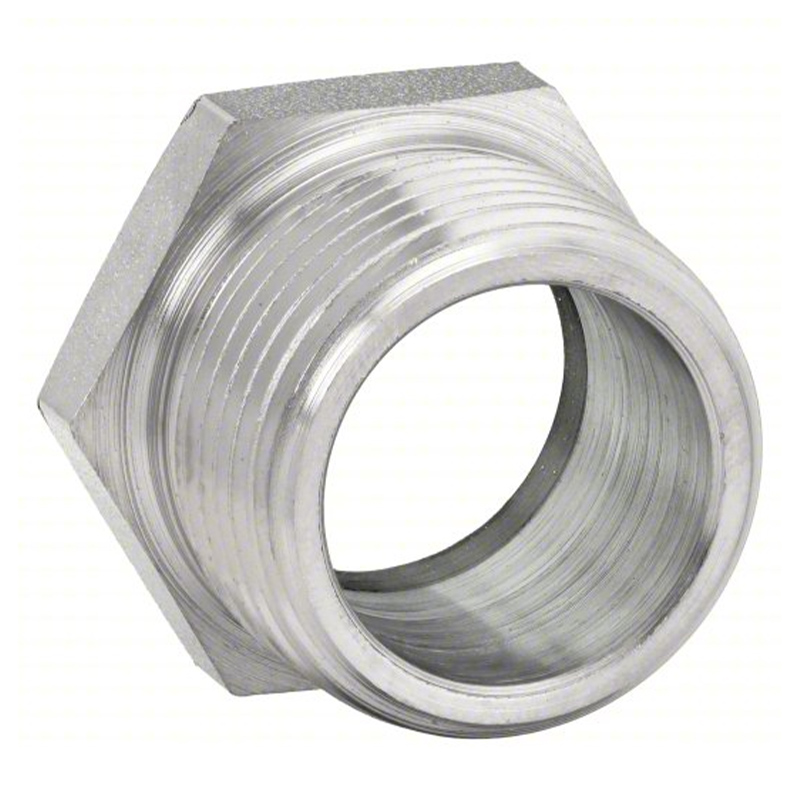

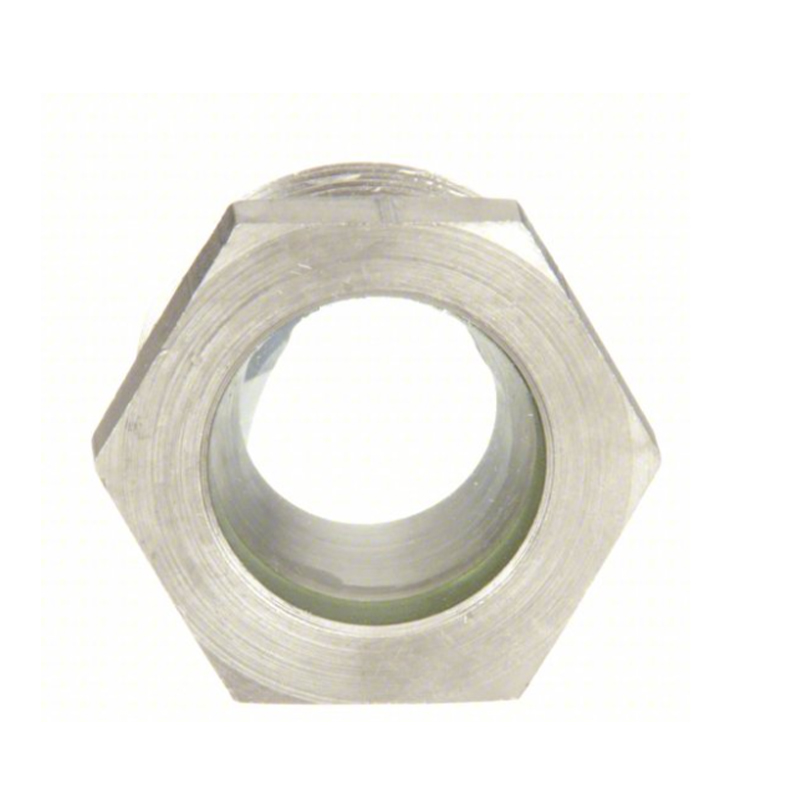

1″-11 1/2 NPT Male Carbon Steel 500 °F High Temperature 1250 PSI Fused Sight Glass for Gear Boxes/Reservoirs

Designed for heavy-duty industrial liquid level monitoring, the Fanovo fused sight glass is a reliable solution for gear boxes and reservoirs. It features a carbon steel body with an electroless nickel finish, delivering excellent durability and corrosion resistance to handle harsh B2B working conditions.
Equipped with a 1″-11 1/2 NPT male thread, this sight glass ensures a tight and secure pipe thread connection. Its 47/50 in diameter fused glass window allows clear visual inspection of clear liquids, enabling real-time fluid level monitoring without disassembly.
The product supports a maximum operating pressure of 1250 psi and a maximum operating temperature of 500 °F, making it suitable for high-pressure and high-temperature applications. It is engineered to provide stable and long-lasting performance for critical industrial fluid management tasks.
Share Now:
This Fanovo fused sight glass is engineered for high-pressure and high-temperature liquid level monitoring in industrial gear boxes and reservoirs. Constructed with carbon steel body finished in electroless nickel, it delivers exceptional durability and corrosion resistance for demanding B2B applications.
Featuring a 1″-11 1/2 NPT male thread for secure pipe thread connection, and a fused glass window with 47/50 in diameter, this sight plug enables clear visual inspection of clear liquids. It supports a maximum operating pressure of 1250 psi and a maximum operating temperature of 500 °F, making it ideal for heavy-duty industrial environments. This sight glass ensures reliable performance for critical fluid level monitoring tasks.
SpecificationDetail
Body MaterialCarbon Steel
Body FinishElectroless Nickel
Window MaterialGlass
Window TypeFused Window (Hermetically Sealed)
Window Diameter47/50 inch
Connection TypeNPT Pipe Threads
Thread GenderMale
Thread Size1″-11 1/2 NPT
Pipe Size1 inch
Max Operating Pressure1250 psi
Max Operating Temperature500 °F (260 °C)
AdvantageDescription
Extreme Condition ToleranceSimultaneously rated for 1250 psi pressure and 500 °F temperature, making it ideal for high-pressure and high-temperature industrial applications.
Secure & Leak-Proof ConnectionThe 1″-11 1/2 NPT male thread ensures a tight, reliable pipe connection with excellent sealing performance and easy installation.
Durable Fused Window DesignThe glass window is fused directly to the metal body, providing enhanced structural strength, vibration resistance, and impact resistance compared to standard gasketed designs.
Superior Corrosion ResistanceThe electroless nickel plating on the carbon steel body offers excellent surface hardness and protection against lubricants, hydraulic fluids, and various chemical media.
Quick Visual InspectionEnables real-time fluid level monitoring without system disassembly, significantly reducing routine maintenance time and improving operational efficiency.
ApplicationPurpose
Gear Boxes / Gear ReducersMonitor gear oil levels to ensure adequate lubrication and prevent dry-running damage.
Hydraulic Tanks / Power UnitsProvide real-time hydraulic fluid level visibility for stable system operation.
CompressorsCheck lubricant levels to avoid overheating or wear due to insufficient oil.
Reservoirs / Lubricant TanksServe as a dependable level indicator for daily inspections and oil management.
Industrial PipelinesAct as an inline sight glass for observing fluid flow and condition.

This sight glass is widely used in gear boxes, compressors, hydraulic tanks, lubricant reservoirs, and industrial pipelines — making it an ideal choice for maintenance professionals, OEM manufacturers, and industrial engineering procurement teams who require reliable fluid level monitoring under tough working conditions.

Certification / StandardDescription
NSF/ANSI 61Complies with health effects standards for drinking water system components.
CEMeets EU safety, health, and environmental protection requirements.
ISO 9001Certified quality management system ensuring consistent production quality.
UPCComplies with Uniform Plumbing Code standards.
Lead Free CompliantMeets lead-free plumbing regulations.

Fanovo offers a one year warranty from the date of shipment. Should any workmanship or material defect appear within the warranty period, Fanovo will, upon verification and substantiation of proper installation and operation, correct such defects through repair or replacement at no charge.

For detailed specification sheets, custom design solutions, or volume purchase quotes, please contact our team today. Fanovo provides not only standard products but also comprehensive OEM/ODM services — from design and prototyping to manufacturing and distribution. Whether you need a custom finish, specialized thread, or unique configuration, we are ready to support your project from concept to delivery.

MaterialCarbon Steel (Body)
Body FinishElectroless Nickel
Window MaterialGlass
Window FeatureFused Window
Window Diameter47/50 in
Connection TypeNPT Pipe Threads
Thread GenderMale
Thread Size1″-11 1/2
Pipe Size1 in

Complies with Lead Free Plumbing Laws, NSF/ ANSI 61, UPC/ CE, ISO 9001

For approval information, please refer to the products specification sheet. For any other information on product certification and documentation information, please contact Fanovo.
