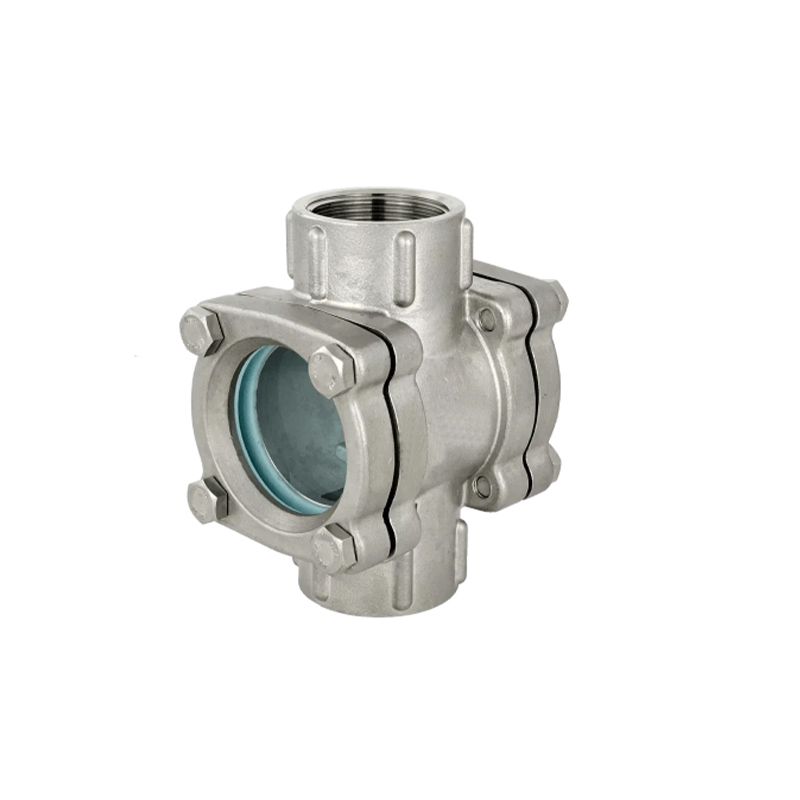

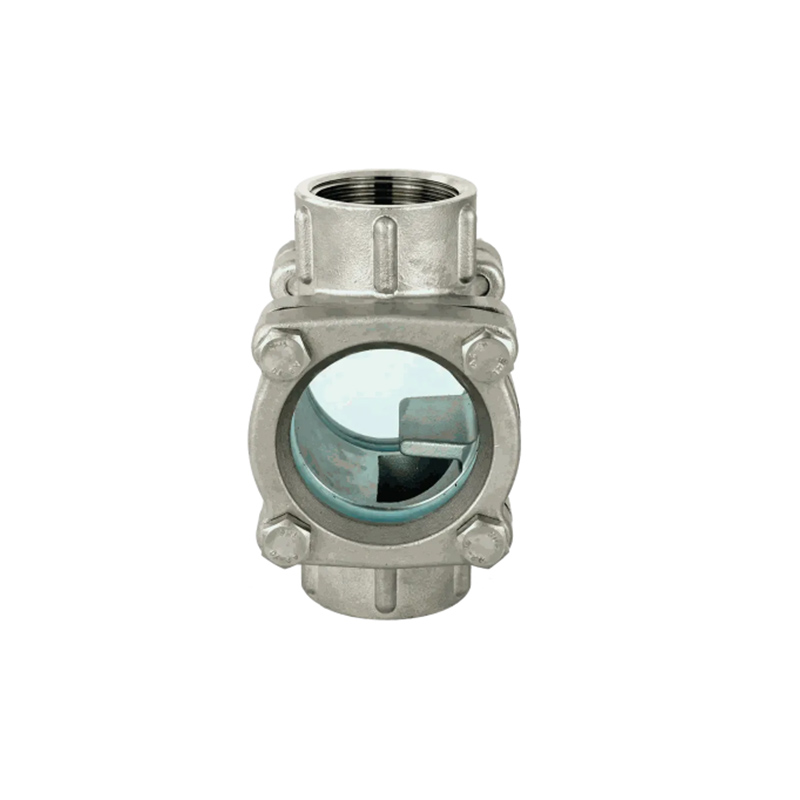

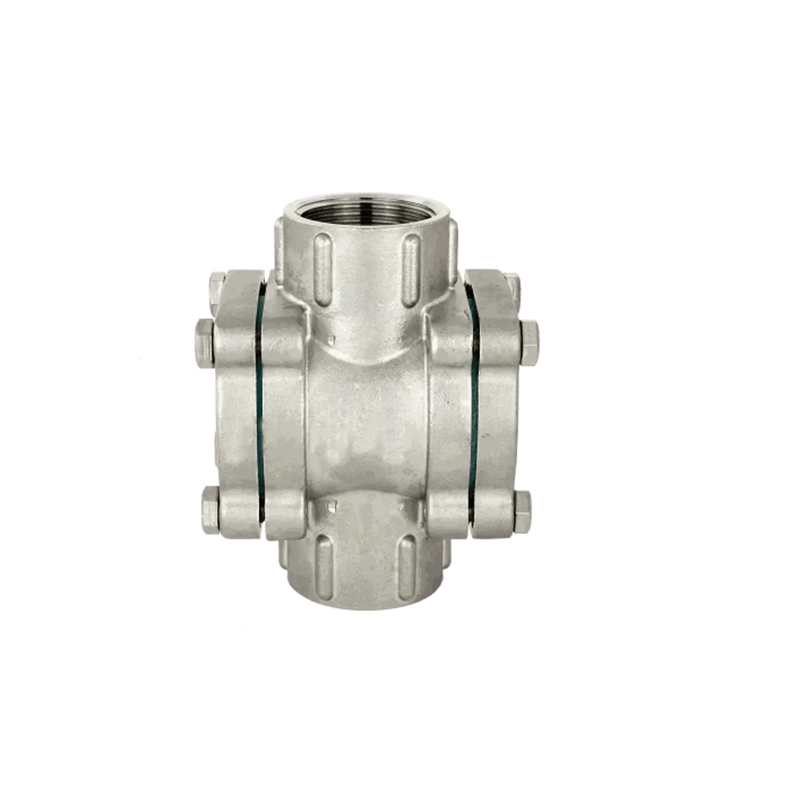

1inch Double Window Sight Glass | 16 Bar High Pressure Stainless Steel Corrosion Resistant Pipeline Sight Glass

  • This standard threaded sight glass provides 3/4 inch and 1 inch sight glass internal thread options, compatible with most industrial pipeline layouts for quick installation.
  • It is rated for 16 Bar working pressure, a reliable high pressure sight glass that maintains stable performance under continuous pressurized industrial operation.
  • Constructed with stainless steel CF8M body and PTFE sealing gasket, this corrosion resistant sight glass resists erosion from acid, alkali and oily media.
  • Designed with dual transparent glass panels, our Double Window Sight Glass delivers full viewing coverage without blind spots for inline fluid monitoring.
  • This versatile pipeline sight glass works steadily between -30°C to 130°C and withstands 120°C thermal shock for complex production environments.
  • Fanovo offers full OEM & ODM customization service for all sizes of threaded sight glass, including adjustable thread specs, customized gaskets and brand logo printing.
Share Now:

Our Double Window Sight Glass is a high-performance industrial sight glass designed for real-time liquid level inspection and flow visualization in industrial pipeline systems. Engineered with 16 bar maximum working pressure, this stainless steel sight glass delivers exceptional durability and reliability in high-pressure, corrosive working environments, making it the ideal solution for industrial fluid monitoring applications.

Core Performance FeatureDetailed Specification
Max Working Pressure16 Bar (industrial grade high pressure resistance)
Nominal Size3/4 inch / 1inch, standard female thread connection
Main Body Material304/316 Stainless Steel, excellent structural strength
Glass MaterialTempered soda-lime glass, high light transmittance, clear observation
Seal PerformancePTFE gasket, leak-proof sealing, corrosion resistant
Working Temperature-30°C ~ 130°C, short-term resistance up to 160°C
Core AdvantageHigh pressure resistant, corrosion resistant, easy to install, low maintenance
As a professional high pressure sight glass, this Double Window Sight Glass adopts a one-piece stainless steel forging process, which effectively avoids structural deformation under high pressure and ensures long-term stable operation. The tempered soda-lime glass has passed strict pressure resistance and thermal shock tests, with a thermal shock resistance of up to 120°C, which can adapt to the temperature changes in complex industrial working conditions.
The PTFE sealing gasket is the core guarantee of the corrosion resistant sight glass. It can resist the erosion of most corrosive liquids and gases, and maintain a stable sealing effect for a long time, which greatly reduces the risk of leakage in the pipeline system. As a reliable threaded sight glass, it features standard 1 inch DN25 female thread connection compatible with most industrial pipeline systems, and the installation can be completed without professional tools, which greatly saves the installation time and cost.
This pipeline sight glass and liquid level indicator is widely used in various industrial scenarios that require real-time monitoring of fluid status. Whether it is oil level inspection in oil storage tanks, flow visualization in chemical pipelines, liquid level monitoring in pharmaceutical production, or fluid observation in food and beverage processing, this Double Window Sight Glass can provide you with clear and accurate visual feedback.
We have sorted out the applicable scenarios and selection suggestions for you, so that you can quickly confirm whether this product meets your working conditions:
Applicable IndustryWorking Condition RequirementsSelection Suggestion
Oil and Gas IndustryHigh pressure, oil medium, outdoor working conditionsStandard 16 bar stainless steel model, PTFE seal is fully compatible
Chemical IndustryCorrosive liquid, high temperature, pipeline transmission316 stainless steel model, better corrosion resistance
Pharmaceutical & Food IndustrySanitary requirements, clean medium, low pressureStandard model, food-grade PTFE seal, easy to clean
Water Treatment IndustryWater medium, normal temperature, pipeline observationStandard model, cost-effective, stable performance

At Fanovo, we are committed to providing high-quality industrial sight glass products that meet the highest industry standards. Every Double Window Sight Glass has passed strict factory tests to ensure that the pressure resistance, sealing performance and observation effect meet the design requirements. We provide professional pre-sales consultation and after-sales service, if you have any questions about product selection, installation or use, please feel free to contact us.

ParameterSpecification
Product ModelGD100 Internal Thread Sight Glass
Core KeywordDouble Window Sight Glass
Nominal WidthDN25 – 1 Inch
Connection TypeFemale Thread (ISO 7-1 / EN 10226-1)
Body MaterialStainless Steel 1.4408 (CF8M)
Glass MaterialTempered Soda-Lime Glass (DIN 8902)
Seal MaterialPTFE Gasket
Face-to-Face Length120mm
Max. Operating Pressure16 Bar
Normal Working Temperature-30°C ~ 130°C
Max. Short-Term Working Temperature160°C
Thermal Shock Resistance120°C (DIN 52323)
Key FeaturesHigh Pressure Resistant, Corrosion Resistant, High Temperature Resistant, Clear Visual Inspection, Leak-Proof Seal
Application ScenariosOil Level Inspection, Liquid Level Monitoring, Flow Visualization, Industrial Pipeline Sight Glass
In StockYes

Complies with Lead Free Plumbing Laws, NSF/ ANSI 61, UPC/ CE, ISO 9001

For approval information, please refer to the products specification sheet. For any other information on product certification and documentation information, please contact Fanovo.
